Digital Manifold Gauges HVAC for 92 Refrigerant Digital Gauges HVAC pressure&Temp Test Air Conditioning Tools & Equipment Supercooling/Superheating Test,for Cold Storages/Refrigerators AC Recharge Kit

Product Details

• Item Dimensions:5.7 x 1.97 x 9.45 inches
• Item Weight:6.2 pounds
• Number of Items:1
• Part Number:Refrigeration Digital-1
• Model:DY522A
• Material Type:Plastic

About this item

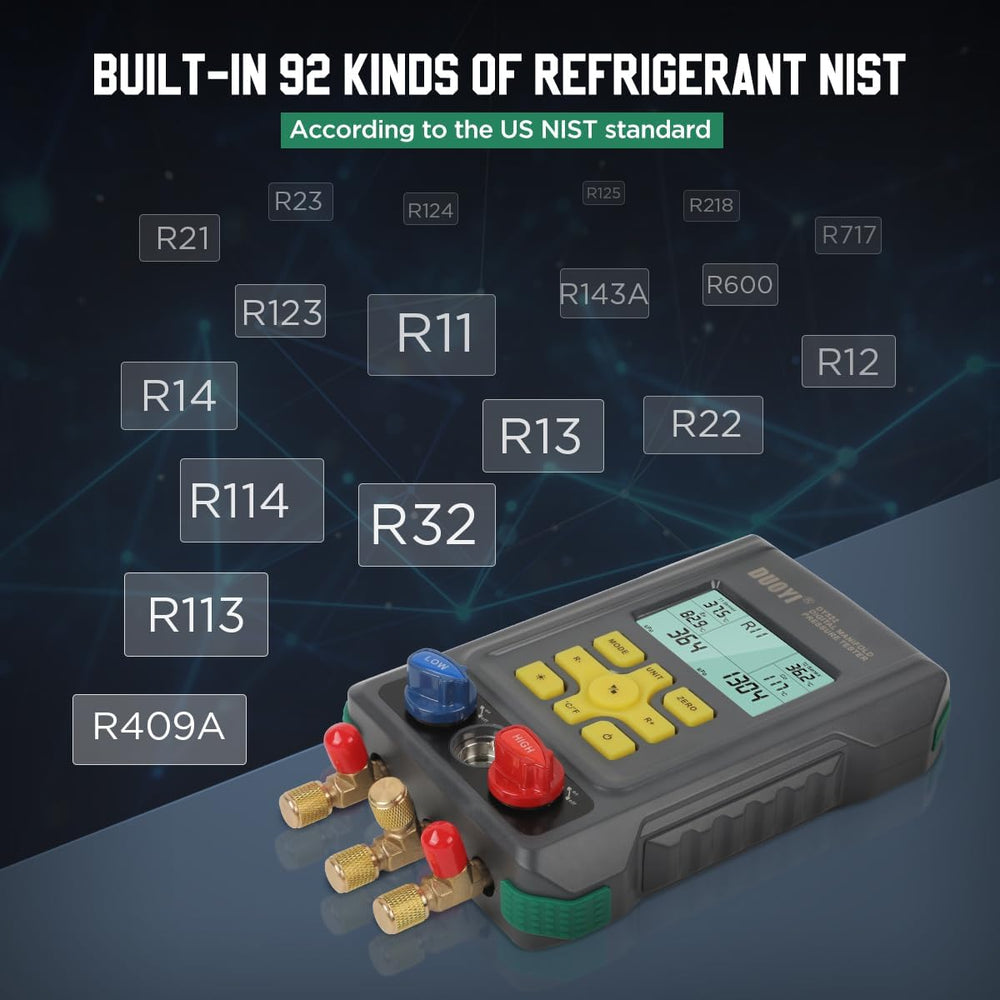

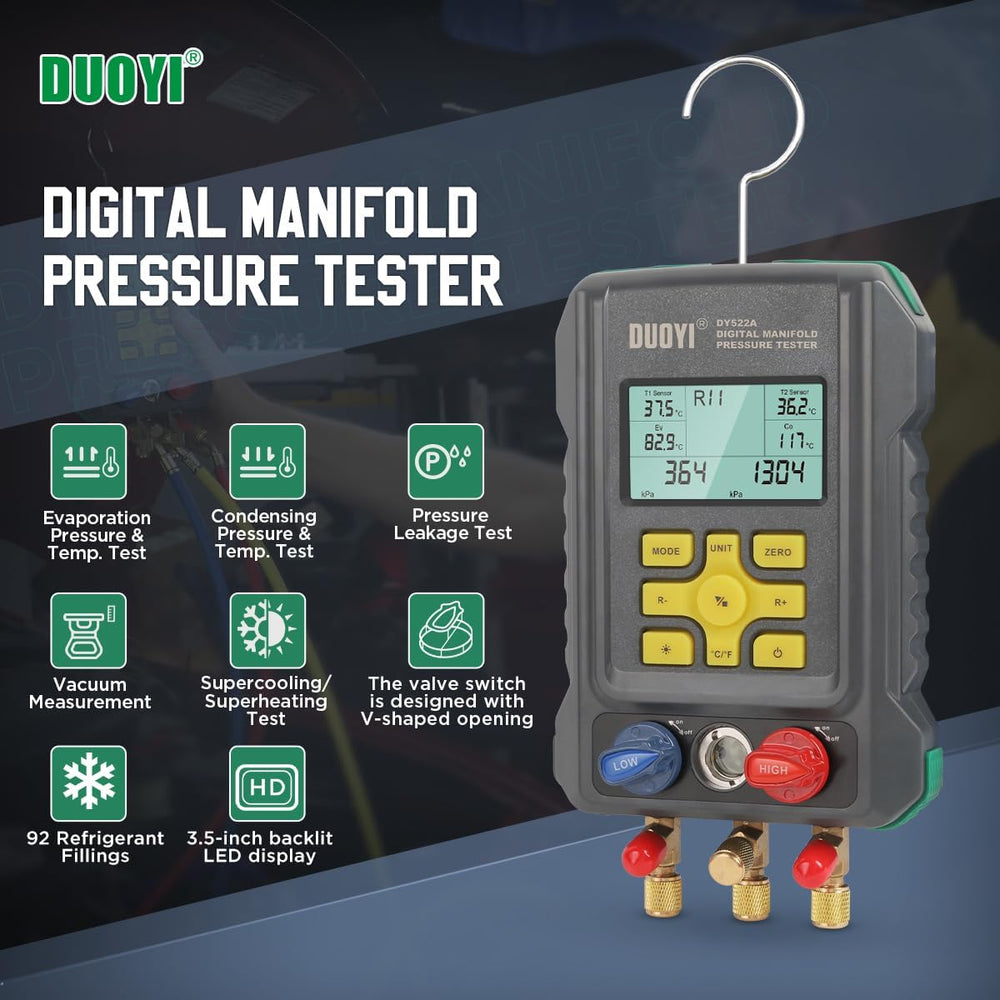

• Digital Manifold Gauge Set For 92 RefrigerantsCompared with other refrigerants meter,our digital manifold gauge can be filled with 92 types of refrigerants and has a wide range of applications.Meter have multiple functions such as dual pressure/temperature test,condensation evaporation pressure/temperature test,pressure leak test,vacuum degree test,calculation of supercooling/superheating.It is suitable for refrigeration equipment such as air conditioners, cold storages and refrigerators.
• Dual Pressure&Temp Test Of High/Low Pressure PipelinesHVAC gauges can measure the pressure/temperature of the refrigerant in the high/low pressure pipelines of the air conditioner in real time.During the refrigerant pressure test,the meter can display the corresponding evaporation/condensation temperature.The smaller the deviation between the temperature measured by the temperature sensor and the evaporative condensation temp., the better the cooling effect and the quality of the refrigerant.

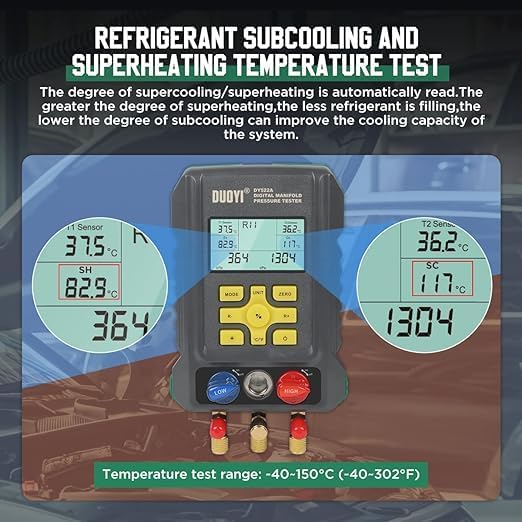

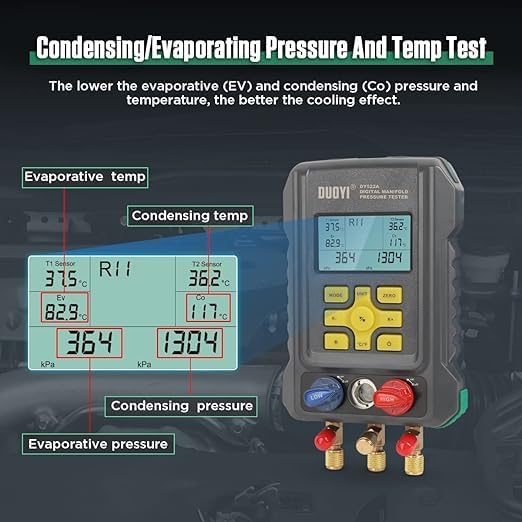

• Condensing/Evaporating Pressure And Temp Test&Supercooling/Superheating TestDuring the refrigerant pressure test,it can automatically test the refrigerant condensation/evaporation pressure temp.The lower the condensation/evaporation pressure and temp, the better the cooling effect.The degree of supercooling/superheating is automatically read.The greater the degree of superheating,the less refrigerant is filling,the lower the degree of subcooling can improve the cooling capacity of the system.

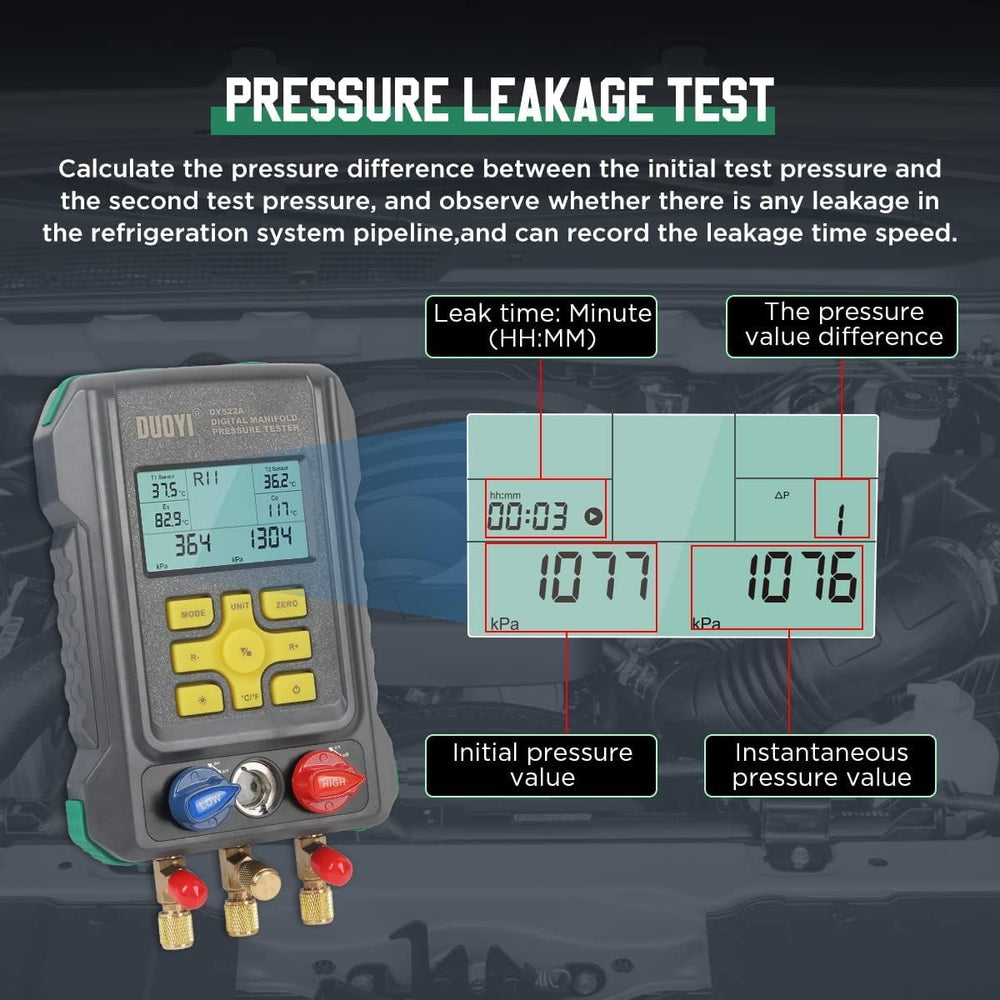

• Vacuum Measurement & Pressure Leakge Test&High/Low Pressure Temp TestRefrigerant meter vacuum table of the digital gauges hvac can be switched to each other.Vacuum test can test the percentage of vacuum measurement and vacuum pressure,can judge the air tightness of the pipeline.Calculate the pressure difference between the initial test pressure and the second test pressure, and observe whether there is any leakage in the refrigeration system pipeline,and can record the leakage time speed.

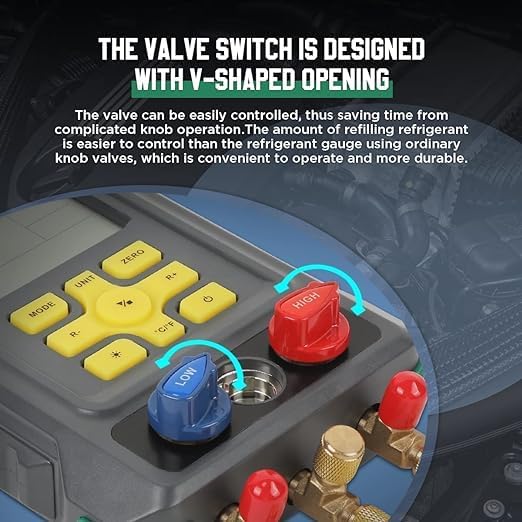

• V-Shaped Valve Switch&High-Precision DataHigh/low pressure valve of the digital refrigerant gauges adopts a V-shaped design.Compared with the ordinary knob valve,the V-shaped valve is easier to control the amount of refrigerant filling,saving operation time,and Material is more durable.Built-in 32-bit digital processing unit and high-precision data acquisition unit,the data volume is high and stable.Pressure/temperature multi-unit automatic conversion (kPa,Mpa,bar,inHg,PSI,Celsius,Fahrenheit)
• 3.5" Backlit Display & Visual Refrigerant Filling Window & High Strength MaterialHVAC digital manifold gauge set adopts 3.5-inch backlight display design,the data is easy to read,and each test result is divided by lines on the screen,the data is more intuitive.HVAC digital gauges is made of high-strength engineering plastic,with anti-slip design on both sides,which is comfortable to hold and durable.Meter has a visualization window through which you can keep an eye on the refrigerant filling.
• NoteTo ensure normal use, be sure to close the valve before each start or use, and then press ZERO to reset . When the value on the display is eliminated, then connect the three-color hose and then open the valve for use.
