YENUO Locking Heavy Duty Drawer Slides Full Extension 12–40 Inch 250 LB
US$66.24
Arrives as soon as ✓ Free shipping over $200Description
Product Details Color: White Item Weight: 0.93 kg Mounting Type: Side Mount Included Components: 1 pair of heavy duty locking drawer slides Number of Items: 1 Unit Count: 2 Count Model Numb...
Delivery & Returns
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
CARVALAX
CARVALAX 45° Precision Eccentric Flaring Kit，Metric/Imperial Clamps
US$89.98
Zyklonix
Sausage Caulk Gun,20 oz Sausage Foil Pack/10 oz Cartridge Adhesive Dual-Purpose,18:1 Thrust,15” Sealant Manual Caulking Gun Kit With Cone Nozzles and Bent Tip (Sliver-2 Pack)
US$88.18
Orion Motor Tech
OMT 3-Way AC Gauge Set for R134a R410A R404A R22, 5ft Hoses
US$61.18
IZEUK
IZEUK 4 Tiers Garage Shelving Wide Storage Shelves Metal Shelves Heavy Duty
US$413.98
SUXXANFurniture
Metal Storage Cabinet with 2 Doors and 4 Hooks
US$178.18
REIBII
REIBII 2020LBS Storage Shelves 5 Tier Garage Shelving Heavy Duty Adjustable
US$89.96
Mirka
Mirka 23-379-080 6-Inch No-Hole 80 Grit Adhesive Sanding Discs, 100-Pack
US$120.62
Wallmaster
Wallmaster 8-Bin Wall Mounted Plastic Storage Bins Hanging Organizer Bins
US$53.98
CMYZ
5 Gallon Water Bottle Holder 9-Tray 3/5 Gallon Water Jug Rack
US$167.38
Behonor
HVAC Valve Core Removal Tool,HVAC Service Wrench Set with Hex Bit Adapters,Dual Size SAE 1/4 to 5/16 Port, 5/16'', 3/8'' Refrigeration Service Wrench,10 Valve Core,20 Microns Vacuum
US$61.18
DOMINOX
Eccentric Flaring Tool Kit, 1/4-3/4 in (6-19mm) 45 Degree
US$71.98
Orion Motor Tech
OMT AC Manifold Gauge Set with 5ft Hoses for R1234yf R404a R134a, 3 Way
US$136.78
More options
Product Details
- Color: White
- Item Weight: 0.93 kg
- Mounting Type: Side Mount

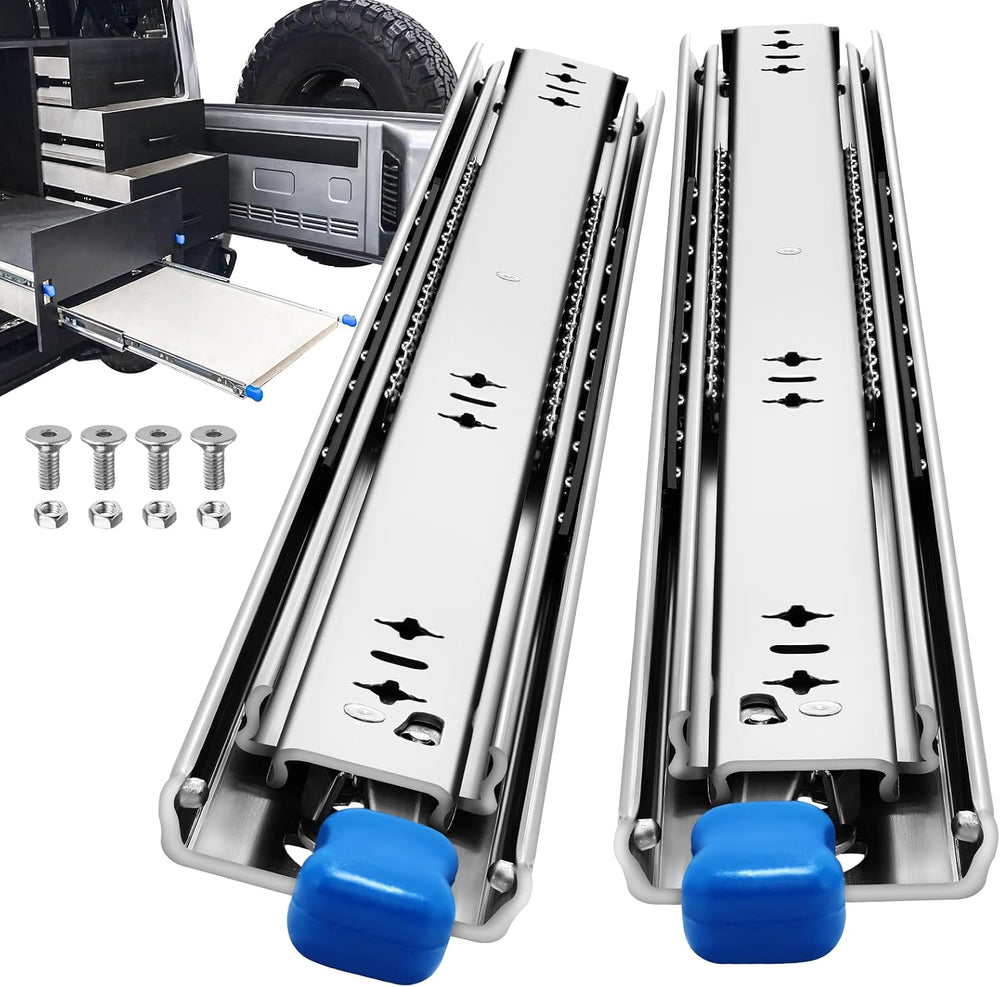

- Included Components: 1 pair of heavy duty locking drawer slides
- Number of Items: 1
- Unit Count: 2 Count
- Model Number: With Lock- 1 Pr
- Number of Packs: 2
- Material Type: Alloy Steel
- Item Dimensions L x W x Thickness: 15"L x 2.05"W x 0.75"Th
- Item Highlight: Side Mount Ball Bearing Lock Design Industrial Locking Cabinet Drawer Glides Rails Runners Available Sizes 12–40 Inch 1 Pair
- Finish Types: Galvanized
- Maximum Weight Capacity: 250 pounds
- Drawer Type: Side Mount, Ball Bearing
About this item

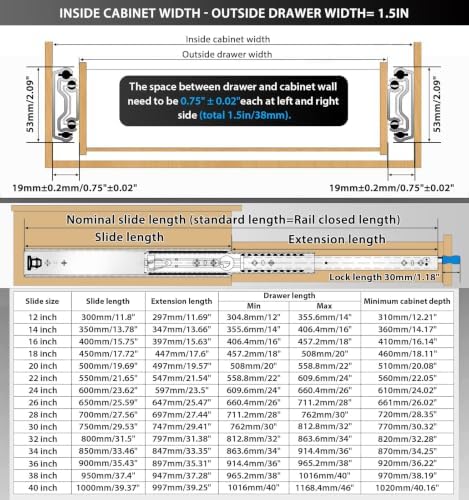

- 📏Installation Note: Fits drawers with internal depth ≥ 15"-17"; requires 0.75in gap on each left/right side between drawer and cabinet wall, totaling 1.5in (internal cabinet width - external drawer width = 1.5in). ⚠️Installation Note: Ensure the two slide rails are parallel during installation, and keep the drawer-side slide and cabinet-side slide horizontally aligned and parallel. 🔩Hardware Note: Mounting screws not included; please purchase M5 screws of appropriate specifications based on your specific installation scenario.

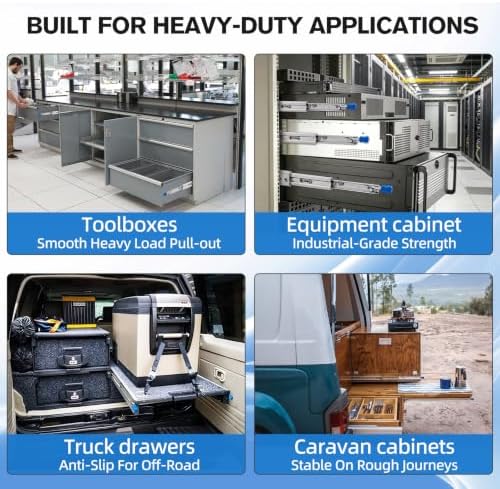

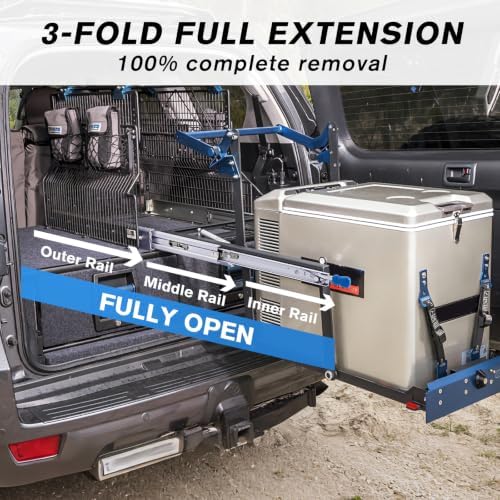

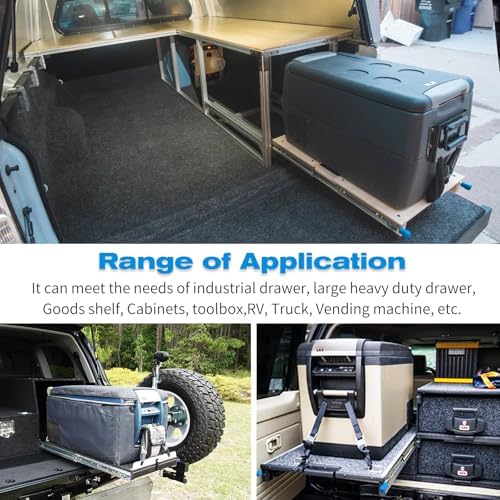

- 📌3-Fold Full Extension Drawer Slides：🔧 Specs: Width 2.08" (53mm) 一Length 14" (350mm)一Fully Extended Length 28" (700mm) 一Installation Clearance 0.75" (per side).✨ Core Feature: 3-fold full extension design enables full slide extension, allowing the drawer to be fully pulled out for easy access to all storage.📦 Applications: Shelves, industrial drawers, mechanical cabinets, RVs, trucks, vending machines, safety drawers, exhibition drawers, heavy-duty truck drawers, etc.
- 📊 Maximum Load Capacity: 250 Lbs
- Heavy Duty Locking Drawer Slides Constructed from 2mm thick high-density Q235 cold-rolled steel (tensile strength > 400MPa), it remains stable and secure even when bearing 250 lbs of weight.🧪 Durability Test：Withstands 150,000 opening/closing cycles under full load without damage.⚠️ Important Note：The shorter the rail length, the higher the load-bearing capacity.

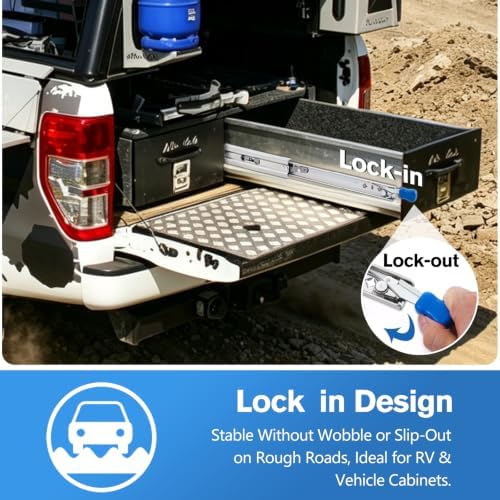

- 🔒With Hold-Still Lock & Detachable ： Features a blue lock handle for easy locking/unlocking. 🔒The slides automatically lock when fully extended or closed, preventing accidental sliding and keeping the drawer stable and secure. 🔓Simply press the handle gently to unlock and resume free sliding.🔩 Effortless Detachment: Press and hold the lock handle while pulling outward to separate the 3rd (narrowest) track effortlessly.

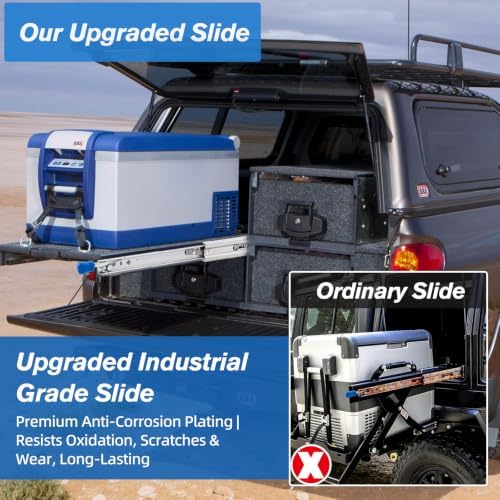

- ⏳30-Year Service Life: The drawer slides feature an electroplated blue zinc surface treatment, providing excellent oxidation resistance and corrosion protection—ensuring a minimum 30-year service life. 💬 Our Commitment: Motto "Use quality slides, live quality life"; beyond premium quality, YENUO prioritizes after-sales support, and feel free to contact us for any quality or installation issues.
