Onemake Undermount Soft Close Drawer Slides with Rear Mount Brackets, 3D Locking Device with Metal Base, 100 Lbs Full Extension, Concealed Bottom Mount Rails Runners for Face Frame (18 Inch, 1 Pair)
US$61.18
Arrives as soon as ✓ Free shipping over $200Description
Product Details Color: Satin Nickel Mounting Type: Under Mount Included Components: 3D Rear Mount Bracket × 1 Pair, Drawer Slide × 1 Pair, Instruction Manual × 1, Level × 1, rear hook with prot...
Delivery & Returns
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
DNSGOOR
DNSGOOR 186Pcs Diamond Art Accessories Kit with A4 LED Light Pad
US$50.38
FRAYSCENT
FRAYSCENT Slat Wall Paneling Garage Wall Organizer, Slatwall Panels Garage Tool Organizer Wall Mount Garage Slat Wall Storage Systems, Slat Board PVC Wall Panels Garage Storage (Black, 8ftx4ft)
US$287.98
WADEO
AC Valve Core Removal Tool R134a R1234yf AC Schrader Valve removal Tool Kit
US$62.98
AOAORGG
5-Tier Garage Shelving 2500LBS Heavy Duty Metal Storage Shelves
US$143.98
THOBEYA
6-in-1 Copper Tube Bender Set – 43" Long Spring, Crease‑Free Bending
US$76.48
Nurfosttek
HVAC Valve Core Removal Tool, Dual Size SAE 1/4" & 5/16"
US$62.98
MateAuto
45 Piece Fuel Line Disconnect Tool Set
US$77.38
VST
VST 6Pack 3.3 ft Black LED Aluminum Channel with Milky White Cover V Shape 16x16mm, Led Strip Light Track with Accessories for Led Strip Lights in Home Lighting
US$71.98
SAMRELAX
Garden Tool Organizer, Garden Yard Tool Rack for Garage, Garage Organization and Storage, Metal Yard Tools Storage up to 46 Tools/Rake/Broom/shovel/, Suitable for Garage, Yard, Patio, Shed
US$71.98
NAVAC
NAVAC NVR2 Valve Core Removal Tool - 1/4 & 5/16 in, 20 Micron Rated
US$145.80
LVOUP
42400 Double-Ended air line Disconnect Tool Set for Heavy-Duty Truck
US$50.38
HORUSDY
HORUSDY Wall Mounted Storage Bins Parts Rack 30PC Organizer Garage Plastic Shop Tool for Men's Gift, Blue,Orange,Red
US$52.06
More options
Product Details
- Color: Satin Nickel
- Mounting Type: Under Mount
- Included Components: 3D Rear Mount Bracket × 1 Pair, Drawer Slide × 1 Pair, Instruction Manual × 1, Level × 1, rear hook with protective gasket × 1, mounting screws × 20, Locking Device with Metal Base × 1 Pair
- Number of Items: 1
- Unit Count: 1 Count
- Model Number: B2603
- Material Type: Zinc
- Item Dimensions L x W x Thickness: 18"L x 1.15"W x 0.07"Th
- Finish Types: Steel
- Maximum Weight Capacity: 100 pounds
- Drawer Type: Under Mounted Slide
About this item
- Soft Close Mechanism: This undermount slide features a hydraulic soft-close system that gently pulls your drawer shut within the last few inches. No more loud bangs or finger pinching. It creates a quiet, controlled closing action every time, adding a premium feel to your your face frame cabinet
- Full Extension & 100 LB Load Capacity: The concealed rails extend fully to let you access every corner of the drawer, while supporting up to 100 lbs. Sturdy construction distributes weight evenly, keeping drawers stable even when loaded with heavy kitchenware or office supplies

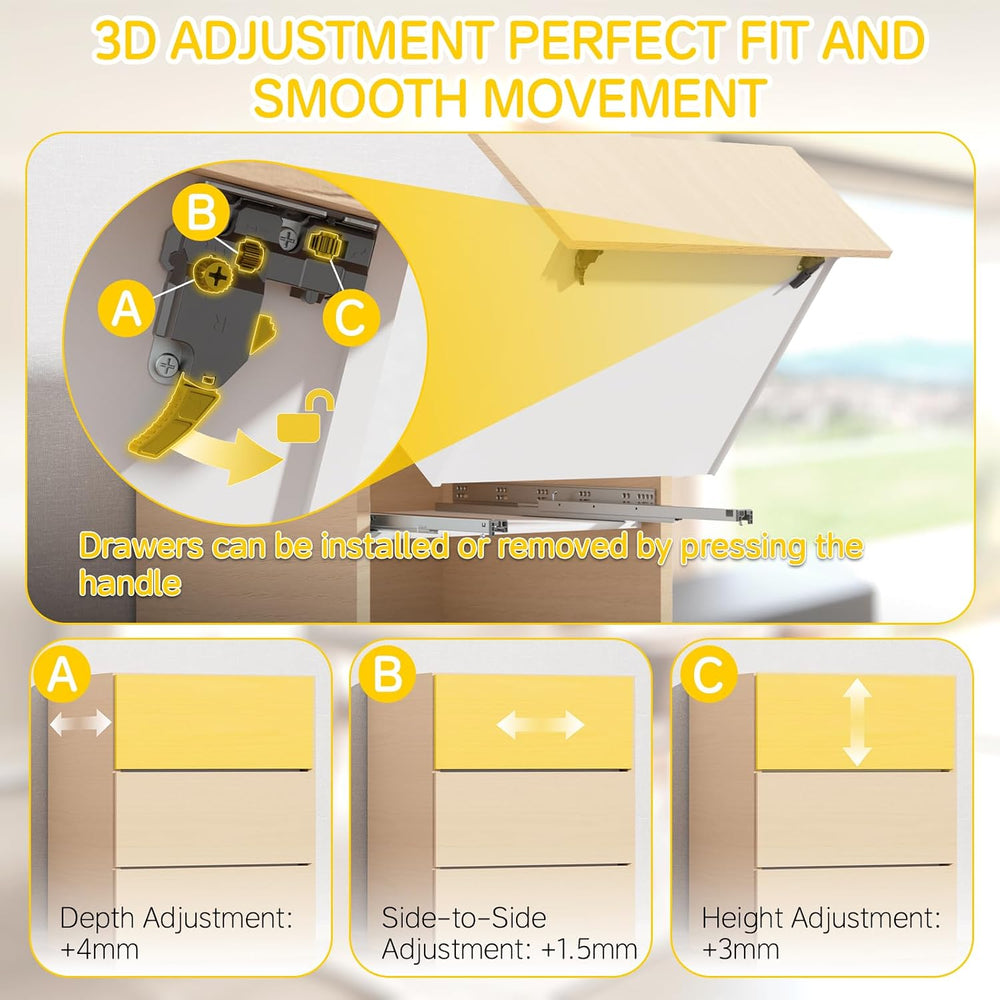

- 3D Adjustable Design: The 3D adjustable design lets you fine-tune the slide position vertically, horizontally, and depth-wise. This flexibility compensates for imperfect cabinet construction, ensuring a aligned drawer front even on face frame cabinets without frustration
- Easy Installation: This lock device features a premium metal base that resists damage and ensures long-term stable operation. It creates a connection between the slide rail and the cabinet, It connects the slide rail to the cabinet, allowing for easy drawer removal and installation. The included level helps achieve precise horizontal placement, reducing drawer jamming and poor sliding while lowering installation difficulty

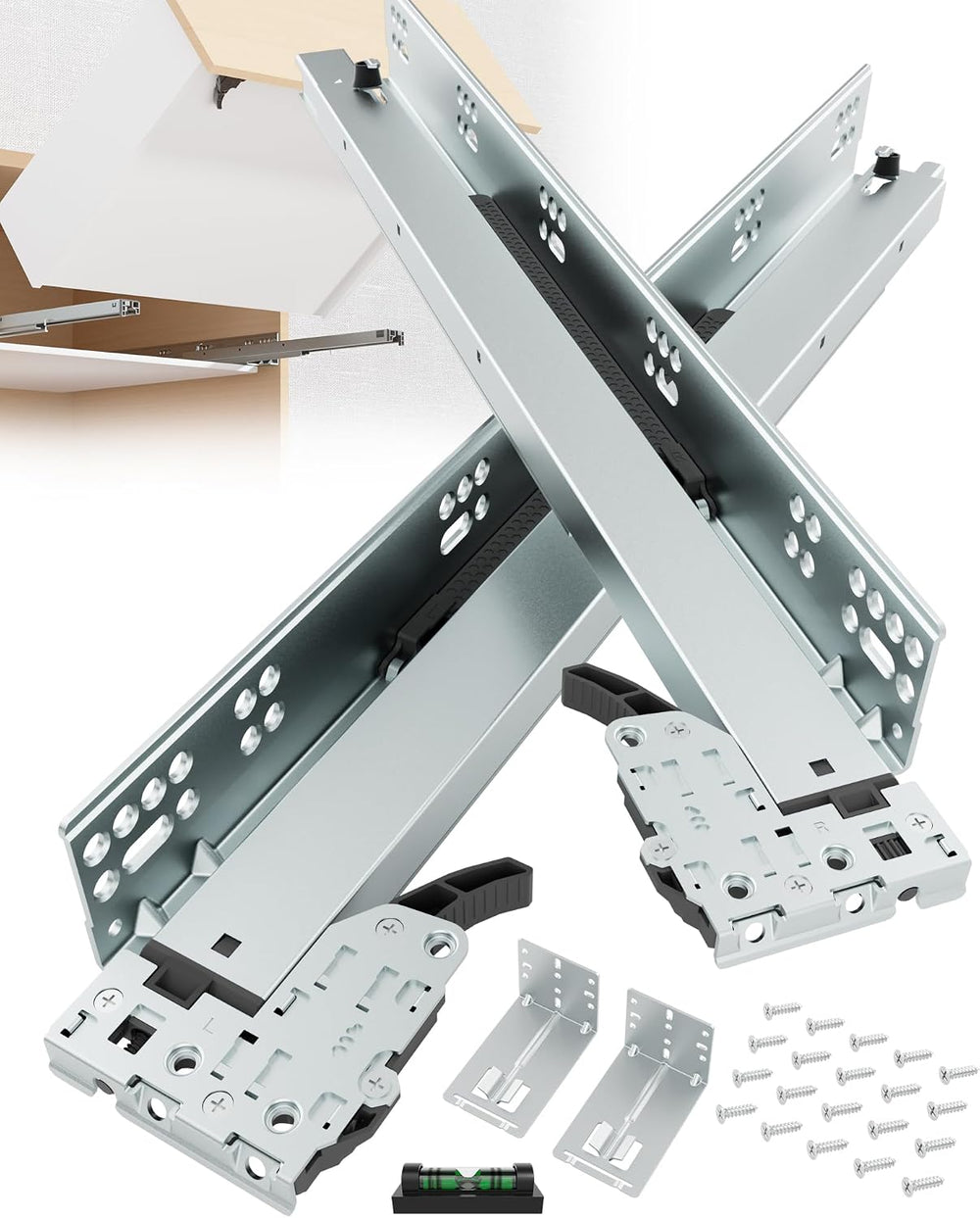

- Package Includes: Each set includes 1 pairs of slides (includes one left and one right slide), rear metal mounting brackets, 3D adjustable locking devices with metal base, rear hook with protective gasket, level, Instruction manual and 20 mounting screws
