Dreyoo Air Compressor Pressure Switch,135-175 PSI, 4 Port, 20 Amp, 1/4 NPT
US$51.28
Arrives as soon as ✓ Free shipping over $200Description
Product Details Color: Basic Kit Item Dimensions: 5.31 x 3.74 x 3.35 inches Compatible Devices: Air Compressors (Two-stage and Single-stage), DIY Pneumatic Systems Connector Type: 1/4 Inch Npt...
Delivery & Returns
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
CARVALAX
CARVALAX 45° Precision Eccentric Flaring Kit，Metric/Imperial Clamps
US$89.98
Zyklonix
Sausage Caulk Gun,20 oz Sausage Foil Pack/10 oz Cartridge Adhesive Dual-Purpose,18:1 Thrust,15” Sealant Manual Caulking Gun Kit With Cone Nozzles and Bent Tip (Sliver-2 Pack)
US$88.18
Orion Motor Tech
OMT 3-Way AC Gauge Set for R134a R410A R404A R22, 5ft Hoses
US$61.18
IZEUK
IZEUK 4 Tiers Garage Shelving Wide Storage Shelves Metal Shelves Heavy Duty
US$413.98
SUXXANFurniture
Metal Storage Cabinet with 2 Doors and 4 Hooks
US$178.18
REIBII
REIBII 2020LBS Storage Shelves 5 Tier Garage Shelving Heavy Duty Adjustable
US$89.96
Mirka
Mirka 23-379-080 6-Inch No-Hole 80 Grit Adhesive Sanding Discs, 100-Pack
US$120.62
Wallmaster
Wallmaster 8-Bin Wall Mounted Plastic Storage Bins Hanging Organizer Bins
US$53.98
CMYZ
5 Gallon Water Bottle Holder 9-Tray 3/5 Gallon Water Jug Rack
US$167.38
Behonor
HVAC Valve Core Removal Tool,HVAC Service Wrench Set with Hex Bit Adapters,Dual Size SAE 1/4 to 5/16 Port, 5/16'', 3/8'' Refrigeration Service Wrench,10 Valve Core,20 Microns Vacuum
US$61.18
DOMINOX
Eccentric Flaring Tool Kit, 1/4-3/4 in (6-19mm) 45 Degree
US$71.98
Orion Motor Tech
OMT AC Manifold Gauge Set with 5ft Hoses for R1234yf R404a R134a, 3 Way
US$136.78
More options
Product Details
- Color: Basic Kit

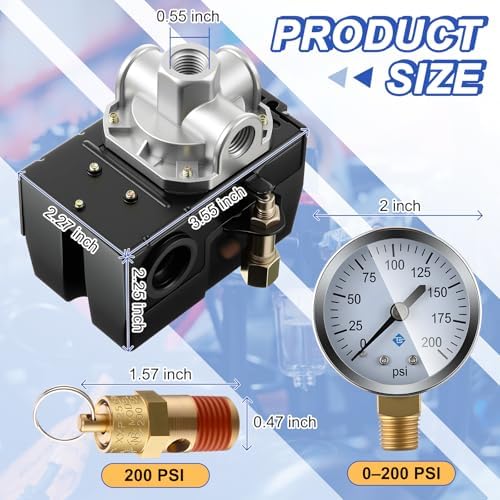

- Item Dimensions: 5.31 x 3.74 x 3.35 inches
- Compatible Devices: Air Compressors (Two-stage and Single-stage), DIY Pneumatic Systems
- Connector Type: 1/4 Inch Npt Female Threaded Interface
- Mounting Type: Plug and Play
- Operating Voltage: 110 volts
- Wattage: 20 watts
- Control Method: Push Button

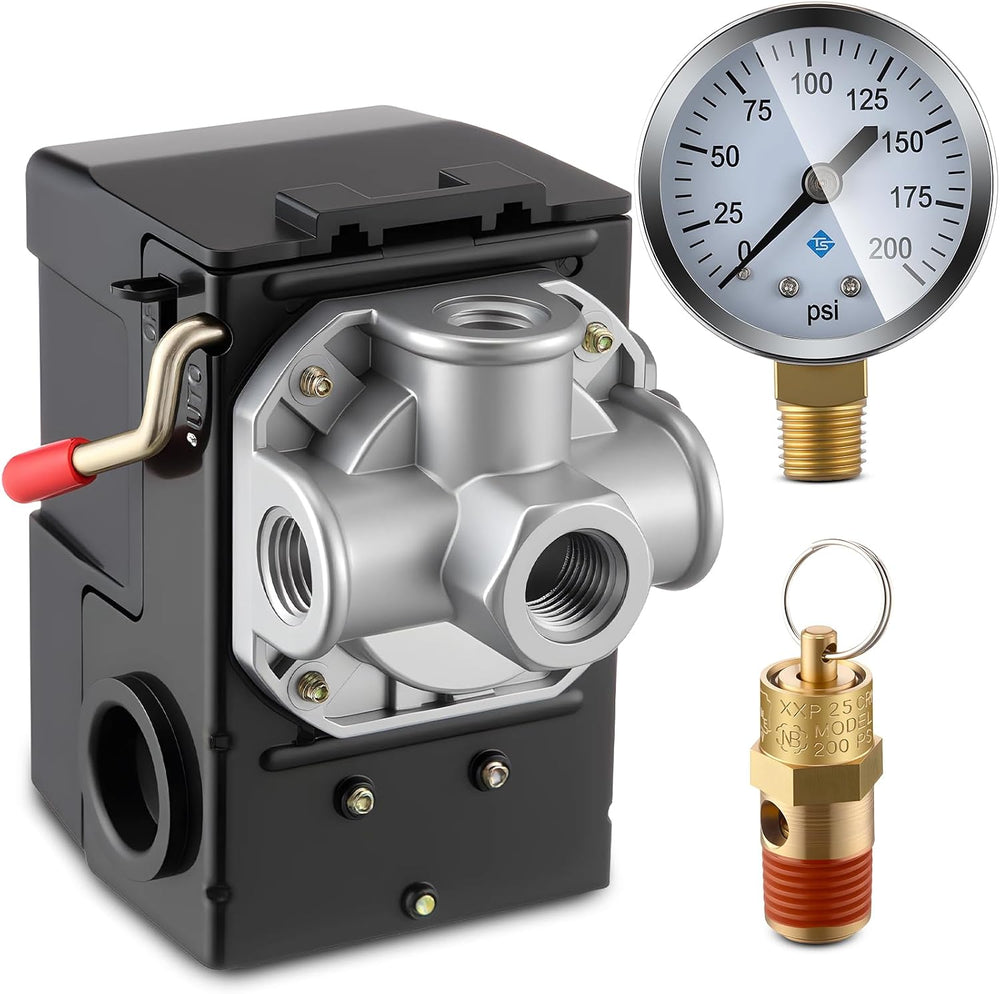

- Included Components: 1 x Pressure gauge, 1 x Pressure switch, 1 x Safety valve
- Number of Items: 1
- Unit Count: 1 Count
- Part Number: DR-Dreyoo-1881
- Operation Mode: ON-OFF
- Current Rating: 20 A
- Contact Type: Normally Open
- Switch Type: Pressure Switch
- Terminal: Screw
- Circuit Type: 4-way
- Number of Positions: 4
- Upper Temperature Rating: 100 °C
- Compatible with Vehicle Type: Various Vehicles and Equipment
- Control Type: Pressure Control
- Material Type: Metal, Plastic
- Contact Material: Brass
- Model: DR-Dreyoo-1881
About this item

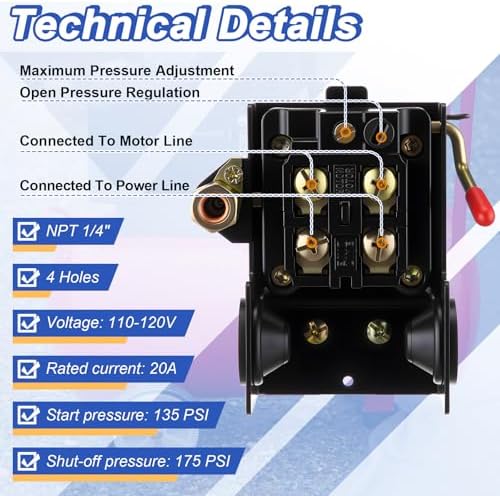

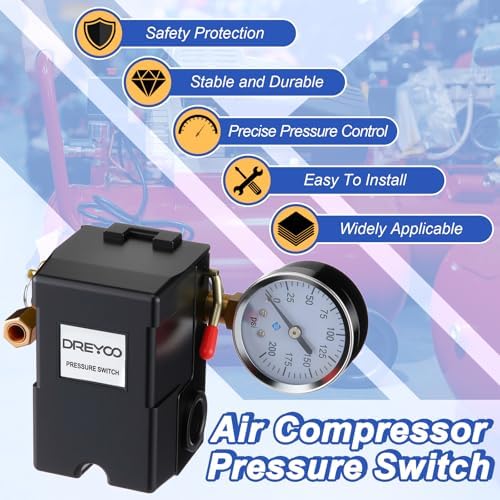

- High Performance Safety Protection: this air compressor pressure switch is rated for 135-175 PSI, features 4 ports, a 20 A rating, and operates on a 110-120V current; It is equipped with a 200 PSI brass safety valve and a 0-200 PSI pressure gauge; It turns on the compressor at 135 psi and turns off the protection at 175 psi, eliminating the risk of overload and providing safe and stable start stop control

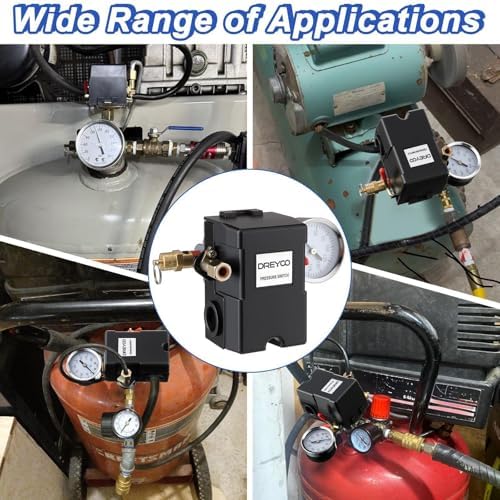

- Four Ports Design, Universal Npt 1/4" Interface: the air pressure switch features four 1/4 inch NPT female threaded interfaces, which are compatible with a variety of pneumatic components, including pressure gauges, safety valves, and air outlets; It offers flexible installation and easy expansion; The 1/4" interface is suitable for most two stage and single-stage air compressors or DIY pneumatic systems
- Precise Pressure Regulation with Flexible Adjustment: This 4 port pressure switch is factory preset to 135–175 PSI and can be fine tuned using the red lever to adjust the cut in/cut out pressure; It is equipped with a 0–200 PSI calibrated pressure gauge with a reading error of less than ±3%, enabling real time monitoring of pressure changes and preventing errors
- Excellent Quality, Stable and Durable: our control switches feature a high strength plastic housing and alloy base, with safety valves made from brass material; They are corrosion resistant and age resistant, capable of repeated use, ensuring stable operation even under long time high frequency use

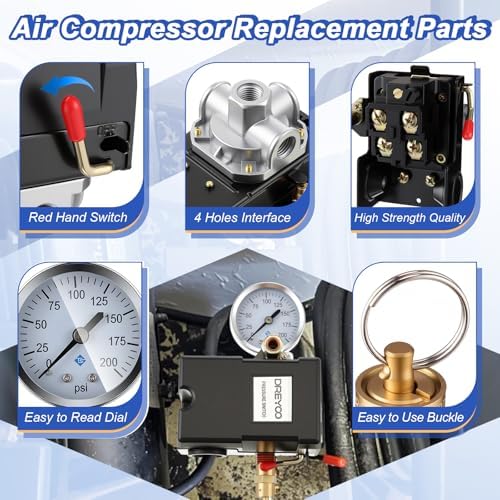

- Complete Kit for Quick Installation: our air compressor replacement parts include pressure switches, pressure gauges, and unloading valves; Plug and play, no additional modifications required, replacement and installation can be completed in 5 minutes; Hassle free and time saving, suitable for professional air compressor and water pump system maintenance or DIY users
