Product Overview
The Auxbeam 8 Gang Switch Panel BA80 is a Multifunction product. It features offers a perfect solution to clean up all wiring harness.
Key Features

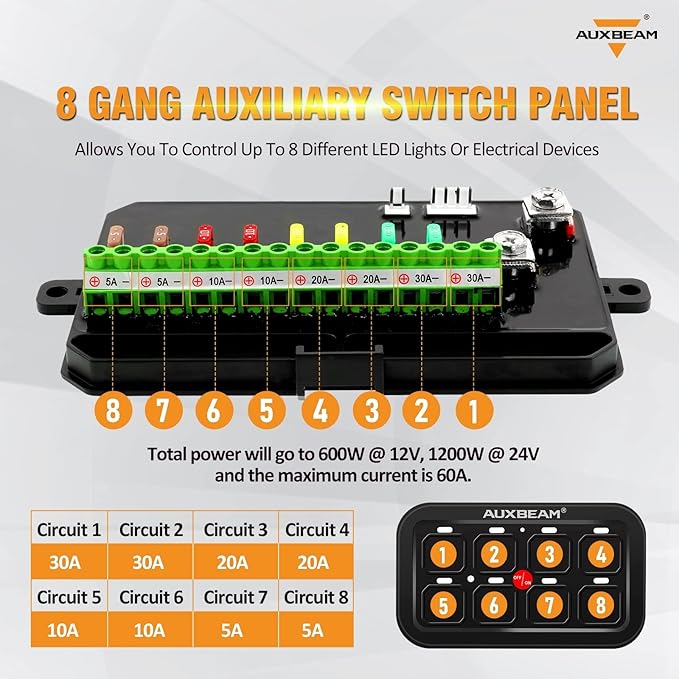

- Offers a perfect solution to clean up all wiring harness and add a single panel to control everything. This switch pod with 8 circuits can power all types of 12V/24V accessories, Max power rating: 1200W. Max current rating: 60A, Operating temperature: -40โ~221โ
- Upgraded 8 gang switch panel have automatic dimmable feature. When it is in the tunnel or dark places, will be dim to reduce the impact on the driver's vision, when it on the road or bright places, will be brighter to make driver control it easier. Compared with ordinary switch panel, our will improve your off-road and night driving experience

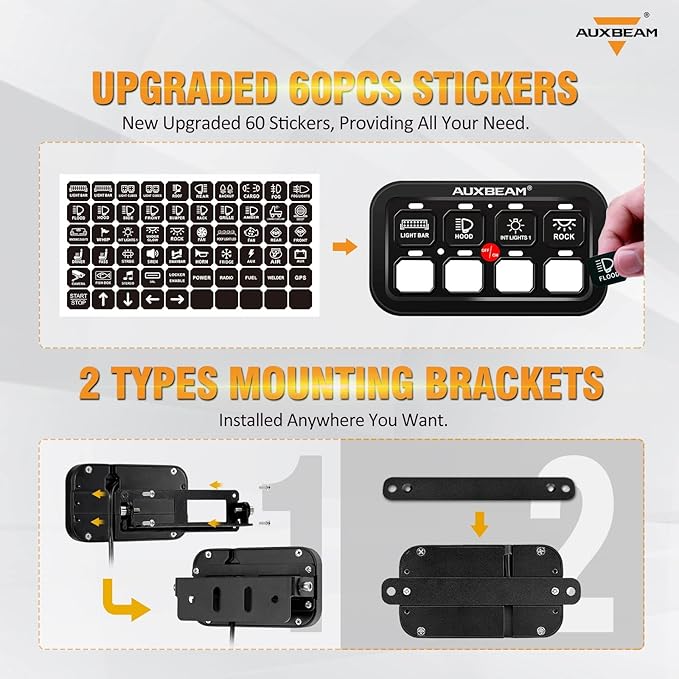

- Keep various wires organized and dry in such a compact control box. Come with wear resistant and plug&play wiring harness, fuse, relay and temperature protection switch. Two kinds of mounting ways for you to choose, you can install it with our mounting bracket or double-sided adhesive tape in any where, no need to cut a big hole on your vehicle
- 100% efforts has been devoted to help driver save time, save money and safe driving. It was designed for use in any vehicle, allowing you to add professional control for your electronic devices in an easy-to-install system. For example, installed in Trucks, Pickup, UTVs, RV, Car, Boats

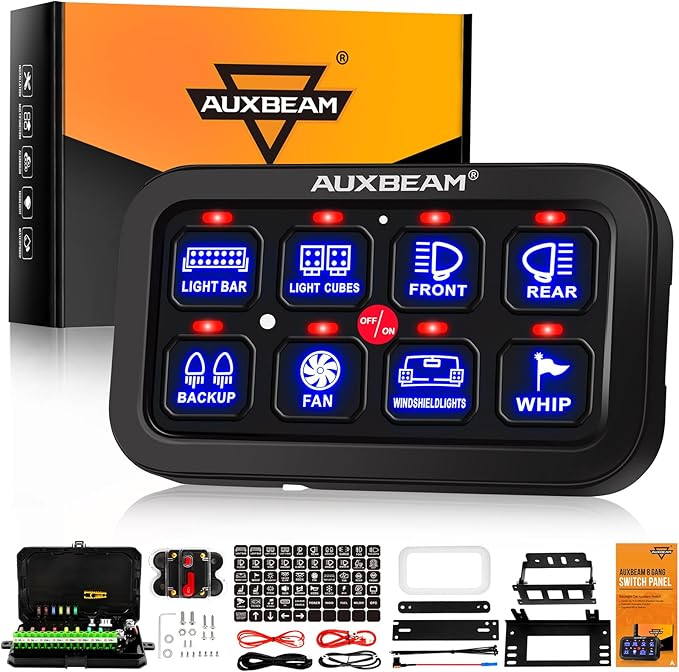

- 1 x switch control box, 1 x switch panel, 2 x mounting brackets, 1x strap, 1 x wiring harness, 1 x voltage protection switch, 1 x 60PCS DIY stickers and 1 x upgraded Installation Instruction. If you have any problems, please feel free to contact us, we will provide you with perfect after-sales service! The product comes with a 2-year protection provided by Auxbeam
Why Choose the Auxbeam 8 Gang Switch Panel BA80
The Auxbeam 8 Gang Switch Panel BA80 offers offers a perfect solution to clean up all and upgraded 8 gang switch panel have automatic dimmable. These features make the Auxbeam 8 Gang Switch Panel BA80 a strong option in the Multifunction category.
Best For
The Auxbeam 8 Gang Switch Panel BA80 is best suited for: use in any vehicle.
Quick Summary

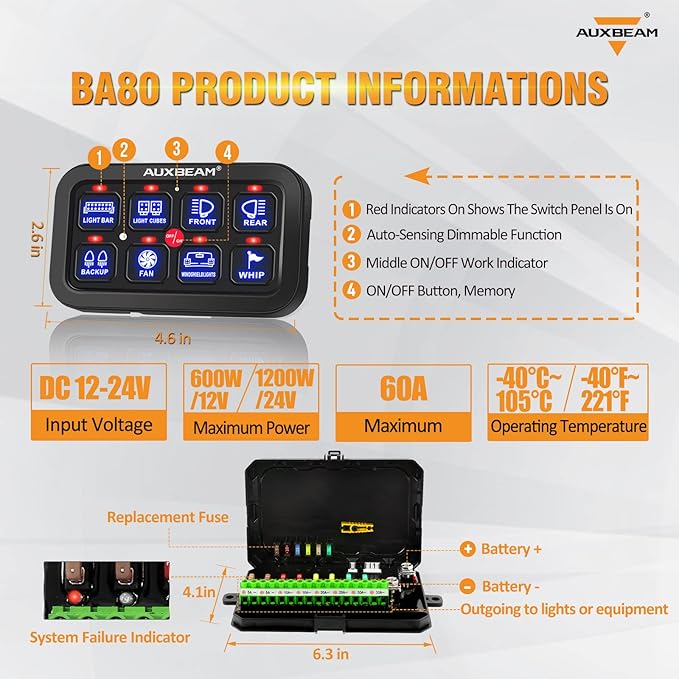

The Auxbeam 8 Gang Switch Panel BA80 is a Multifunction product by Auxbeam. Operation Mode: ON-OFF-ON. Current Rating: 60 Amps. Operating Voltage: 24 Volts. Contact Type: Normally Closed. Connector Type: Plug In.

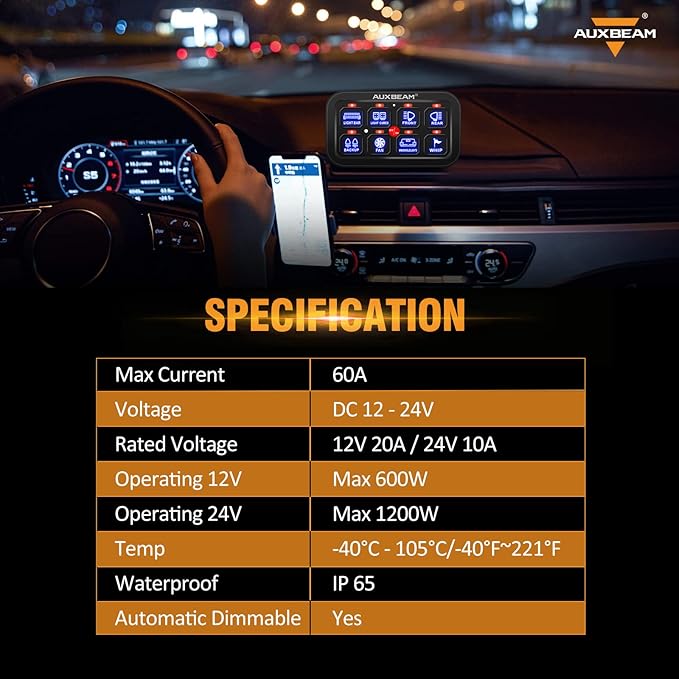

Product Specifications
| Specification | Details |
|---|---|
| Operation Mode | ON-OFF-ON |
| Current Rating | 60 Amps |
| Operating Voltage | 24 Volts |
| Contact Type | Normally Closed |
| Connector Type | Plug In |
| Brand | Auxbeam |
| Terminal | Screw |
| Item dimensions L x W x H | 4.6 x 0.54 x 2.6 inches |
| Circuit Type | 1-way |
| Mounting Type | Panel Mount |
| Switch Type Push Button | Material Metal |
