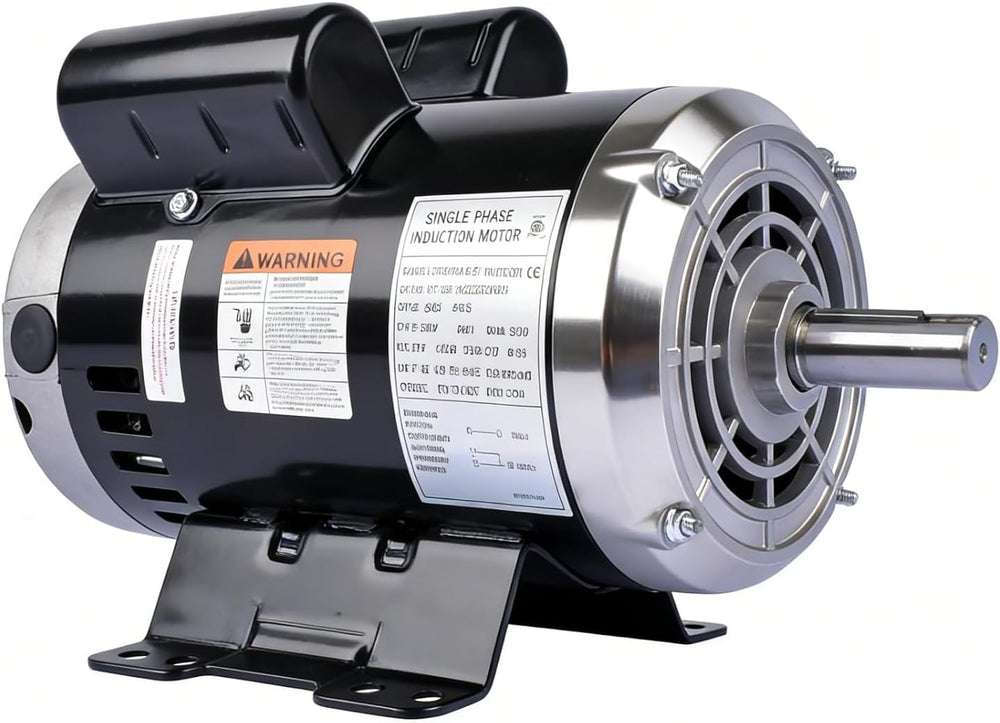

54421193 5HP Air Compressor Motor for Ingersoll Rand, Single Phase
US$662.40
Arrives as soon as ✓ Free shipping over $200Description
Product Details Material: Iron Size: 5HP Product Dimensions: 16.93 x 9.25 x 11.81 inches Item Weight: 47.5 pounds Voltage: 230 volts Included Components: Air Compressor Electric Motor ...
Delivery & Returns
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
CARVALAX
CARVALAX 45° Precision Eccentric Flaring Kit，Metric/Imperial Clamps
US$89.98
Zyklonix
Sausage Caulk Gun,20 oz Sausage Foil Pack/10 oz Cartridge Adhesive Dual-Purpose,18:1 Thrust,15” Sealant Manual Caulking Gun Kit With Cone Nozzles and Bent Tip (Sliver-2 Pack)
US$88.18
Orion Motor Tech
OMT 3-Way AC Gauge Set for R134a R410A R404A R22, 5ft Hoses
US$61.18
IZEUK
IZEUK 4 Tiers Garage Shelving Wide Storage Shelves Metal Shelves Heavy Duty
US$413.98
SUXXANFurniture
Metal Storage Cabinet with 2 Doors and 4 Hooks
US$178.18
REIBII
REIBII 2020LBS Storage Shelves 5 Tier Garage Shelving Heavy Duty Adjustable
US$89.96
Mirka
Mirka 23-379-080 6-Inch No-Hole 80 Grit Adhesive Sanding Discs, 100-Pack
US$120.62
Wallmaster
Wallmaster 8-Bin Wall Mounted Plastic Storage Bins Hanging Organizer Bins
US$53.98
CMYZ
5 Gallon Water Bottle Holder 9-Tray 3/5 Gallon Water Jug Rack
US$167.38
Behonor
HVAC Valve Core Removal Tool,HVAC Service Wrench Set with Hex Bit Adapters,Dual Size SAE 1/4 to 5/16 Port, 5/16'', 3/8'' Refrigeration Service Wrench,10 Valve Core,20 Microns Vacuum
US$61.18
DOMINOX
Eccentric Flaring Tool Kit, 1/4-3/4 in (6-19mm) 45 Degree
US$71.98
Orion Motor Tech
OMT AC Manifold Gauge Set with 5ft Hoses for R1234yf R404a R134a, 3 Way
US$136.78
More options
Product Details
- Material: Iron
- Size: 5HP
- Product Dimensions: 16.93 x 9.25 x 11.81 inches
- Item Weight: 47.5 pounds
- Voltage: 230 volts
- Included Components: Air Compressor Electric Motor
- Part Number: Mixizap 56283138 23378805
- Horsepower: 5 hp
About this item

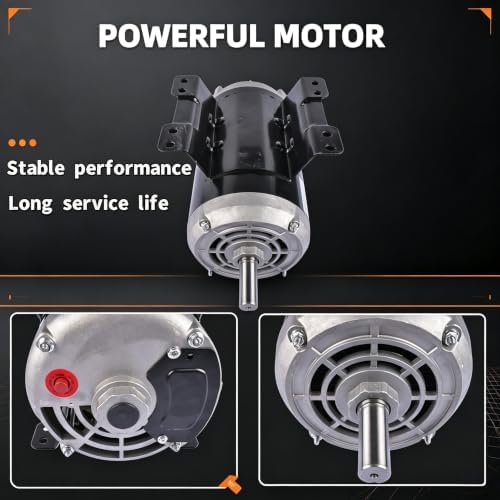

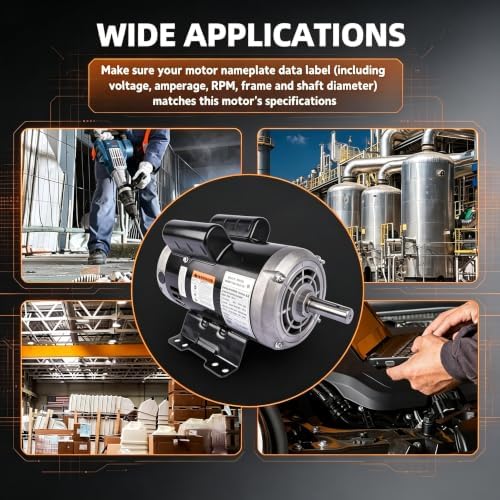

- 【Powerful 5HP Electric Motor】: This 5HP motor delivers strong performance with 3450 RPM high-speed operation, ensuring quick starts and maximum efficiency for heavy-duty equipment. Ideal for air compressors and industrial applications requiring reliable power

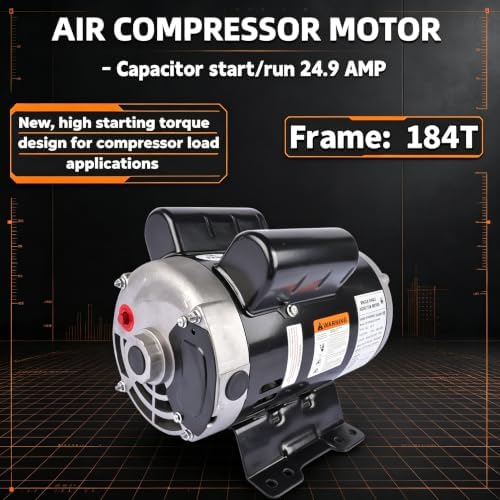

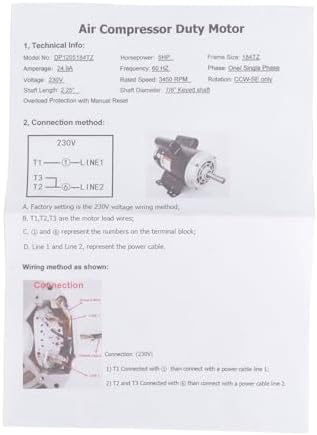

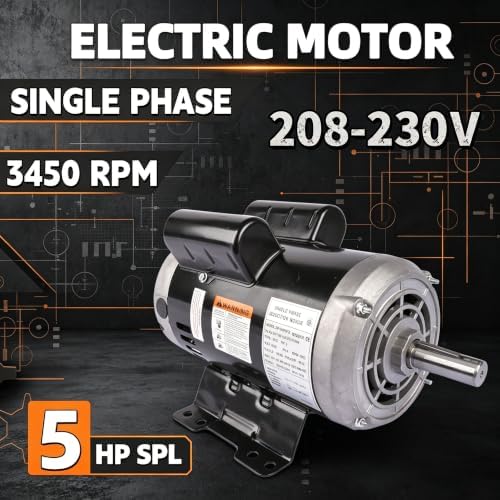

- 【Specifications】: Power 5 HP; FLA 24.9; SFA 27.3; RPM: 3450; Frame: 184T; Shaft Size: 7/8" x 2 1/4" with Keyway; Shaft height: 4.5" (Measured to Shaft Center); Base: Flat Rigid Mounting Base; Voltage: 208-230V 60hz, 24.9 AMPS; Phase: Single Phase Service Factor: 1.15
- 【Part Number】: 56283138, 23378805, 23220064, 54421193. Note: The air compressor motor is specially used for air compressors. Please purchase the motor according to the specific parameters you need, and professional installation is recommended

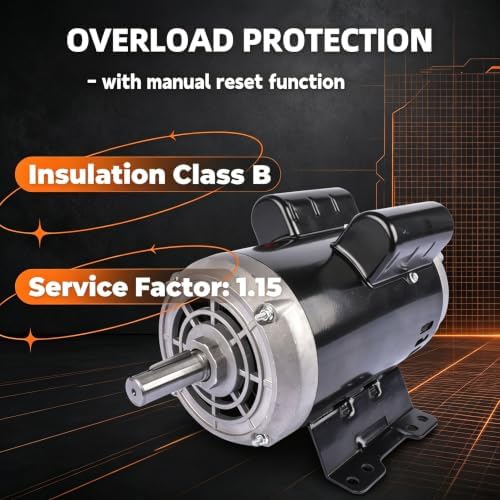

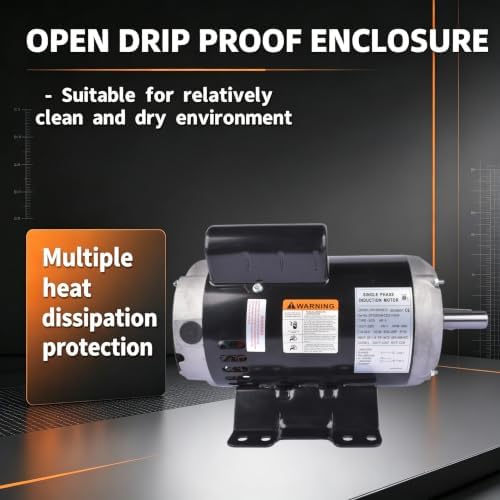

- 【Specificities】: Insulation class B; ball bearings; open drip-proof housing; manual overload protection for relatively clean and dry environments;Rotate counterclockwise, cannot be changed
- 【Outstanding Durability】: As a general-purpose heavy-duty motor made of iron, this motor is carefully designed to withstand long-term use and harsh environments, ensuring long-lasting durability
