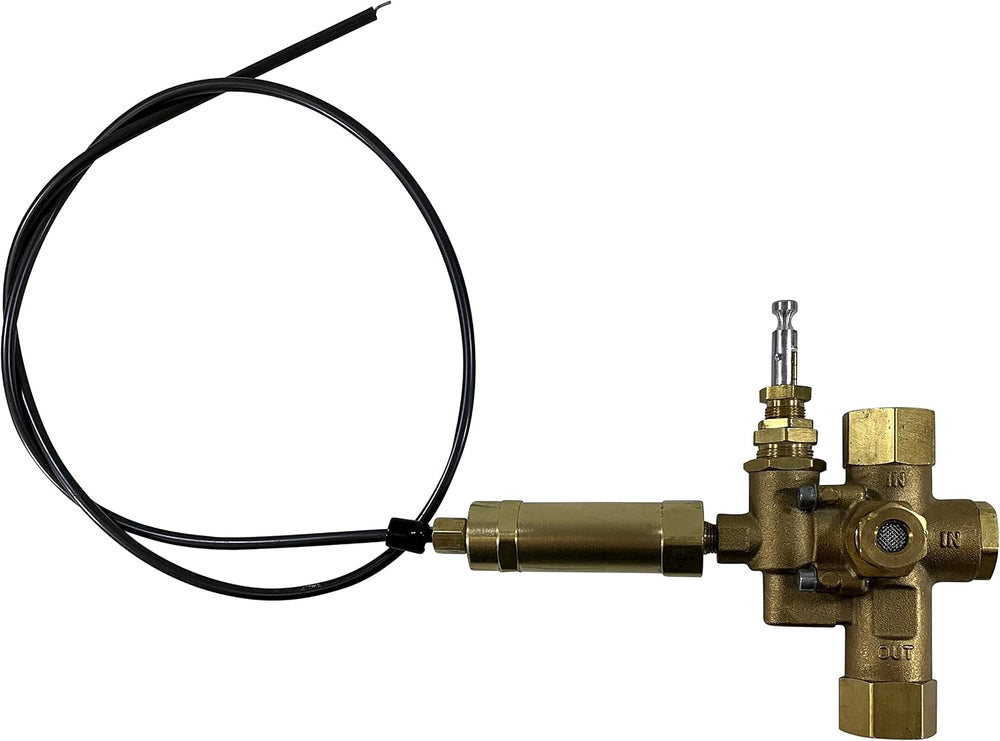

1/2" NPT Combination Pilot Valve, Unloader Valve, Check Valve plus Throttle Control Cable for 8HP - 13 HP Gas air Compressors and Below (140-175 PSI, 36" Throttle Control Cable & Unloader Valve)
US$167.38
Arrives as soon as ✓ Free shipping over $200Description
Product Details Size: 140-175 PSI Connector Type: Threaded Number of Items: 1 Unit Count: 1 Count Model Number: NG1-M W/ OPTIONAL THROTTLE Number of Packs: 1 Number of Pieces: 1 Set Name: ...
Delivery & Returns
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
DNSGOOR
DNSGOOR 186Pcs Diamond Art Accessories Kit with A4 LED Light Pad
US$50.38
FRAYSCENT
FRAYSCENT Slat Wall Paneling Garage Wall Organizer, Slatwall Panels Garage Tool Organizer Wall Mount Garage Slat Wall Storage Systems, Slat Board PVC Wall Panels Garage Storage (Black, 8ftx4ft)
US$287.98
WADEO
AC Valve Core Removal Tool R134a R1234yf AC Schrader Valve removal Tool Kit
US$62.98
AOAORGG
5-Tier Garage Shelving 2500LBS Heavy Duty Metal Storage Shelves
US$143.98
THOBEYA
6-in-1 Copper Tube Bender Set โ 43" Long Spring, CreaseโFree Bending
US$76.48
Nurfosttek
HVAC Valve Core Removal Tool, Dual Size SAE 1/4" & 5/16"
US$62.98
MateAuto
45 Piece Fuel Line Disconnect Tool Set
US$77.38
VST
VST 6Pack 3.3 ft Black LED Aluminum Channel with Milky White Cover V Shape 16x16mm, Led Strip Light Track with Accessories for Led Strip Lights in Home Lighting
US$71.98
SAMRELAX
Garden Tool Organizer, Garden Yard Tool Rack for Garage, Garage Organization and Storage, Metal Yard Tools Storage up to 46 Tools/Rake/Broom/shovel/, Suitable for Garage, Yard, Patio, Shed
US$71.98
NAVAC
NAVAC NVR2 Valve Core Removal Tool - 1/4 & 5/16 in, 20 Micron Rated
US$145.80
LVOUP
42400 Double-Ended air line Disconnect Tool Set for Heavy-Duty Truck
US$50.38
HORUSDY
HORUSDY Wall Mounted Storage Bins Parts Rack 30PC Organizer Garage Plastic Shop Tool for Men's Gift, Blue,Orange,Red
US$52.06
More options
Product Details
- Size: 140-175 PSI
- Connector Type: Threaded
- Number of Items: 1
- Unit Count: 1 Count
- Model Number: NG1-M W/ OPTIONAL THROTTLE
- Number of Packs: 1
- Number of Pieces: 1
- Set Name: Combination Valve and Throttle Control Cable Set
- Manufacturer Part Number: NG1-M W/ OPTIONAL THROTTLE
- Material Type: Brass, Stainless Steel
- Exterior Finish: Brass, Stainless Steel
- Inlet Connection Type: National Pipe Tapered
- Outlet Connection Type: NPT THREADING
- Maximum Pressure: 500 psi
- Number of Ports: 2
- Thread Size: 1/2 inch NPT
- Thread Type: NPT
- Valve Type: Check Valve
- Inlet Connection Size: 1/2 NPT inches
- Outlet Connection Size: 1/2 NPT inches
- Specification Met: Brass Construction, Outdoor Use, Performance & Safety Standards
About this item
- 1/2" Female NPT Inlet / Outlet, Combination pilot valve, check valve, unloader valve all-in-one for 8HP - 13HP Gas Powered Air Compressor Engines and Below.
- Throttle Control: For Throttle Control Cable Variation option, please select your Throttle Control Cable OAL (Overall length) from the Variation options above.
- Unloader Valve PSI Options: Please select your ON/OFF PSI Rating on the Unloader Valve from the variations above. The Lower Pressure ON position, the unloader will relay to the engine through the throttle control that its time to cycle ON. The Higher Pressure OFF position, the unloader valve will relay to the engine through the throttle control that its time to Idle OFF. If you already have a Throttle Control Mechanism, simply select the " Valve ONLY " Variation option.

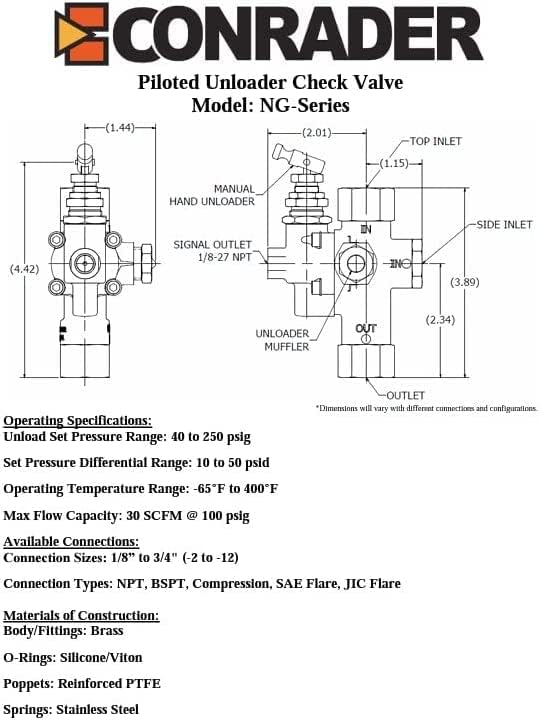

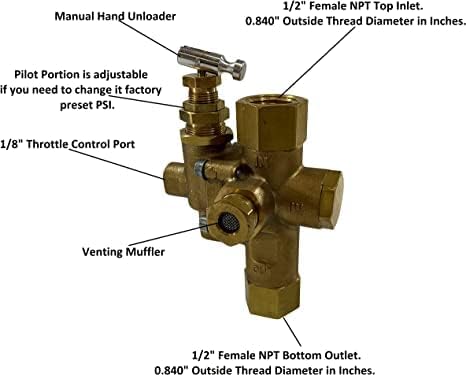

- Please see our break down sheet shown in our pics for details regarding each connection port.
- Unloader Valve: 30 CFM Flow Rate, Pressure differential 10 to 50 psi, operating temp -65f to 400f max. All brass construction and built for the rigors of outdoor gas compressors. Manual hand unloader toggle and brass venting muffler included.

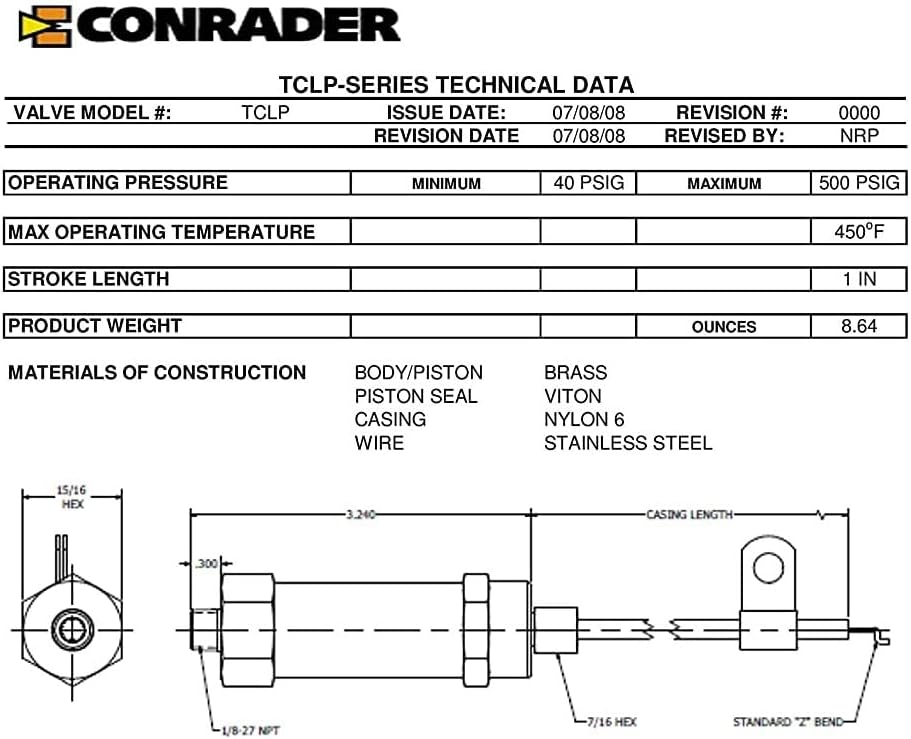

- Throttle Control Cable: The throttle control connects from the unloader to your engine throttle arm and acts as a relay notifying the engine of when its time to run or idle. Each throttle control connects from the throttle outlet on the valve with a Z Bend connection type on the tip of the cable. Min. Pressure 80 PSI, Max Operating Pressure 500 PSI, Retracted Spring Force: 16.89 lbf, Stroke Length: 1.00 inch.
