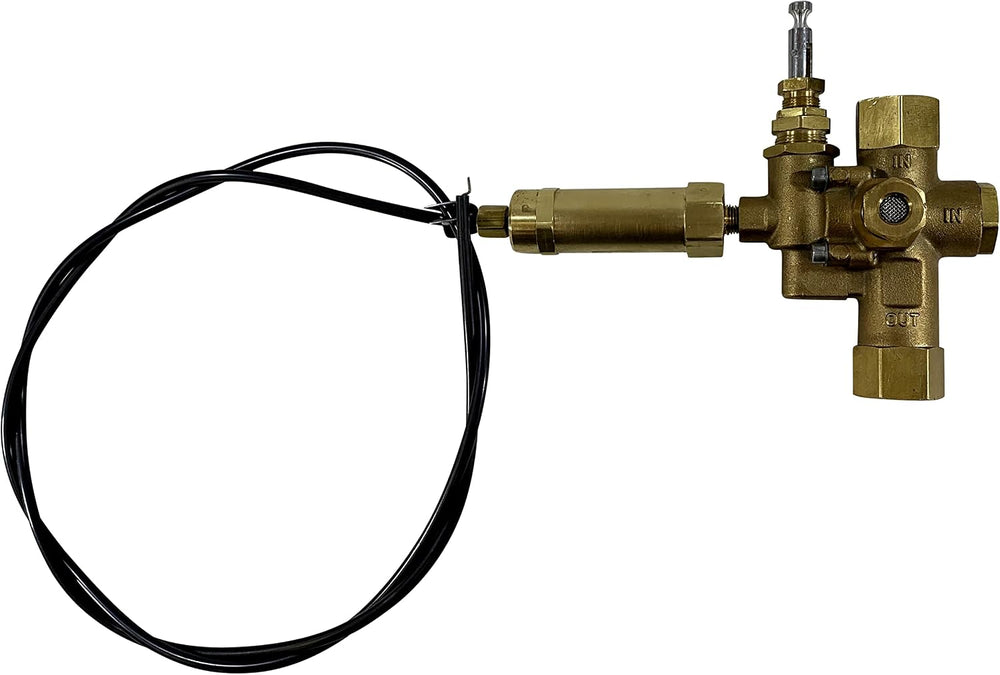

1/2" NPT Combination Pilot, Unloader, Check Valve plus Throttle Control Cable for 8HP - 13 HP Gas air Compressors and Below (140-175 PSI, 60" Throttle Control Cable & Unloader Valve)
US$160.18
Arrives as soon as ✓ Free shipping over $200Description
Product Details Size: 140-175 PSI Number of Items: 1 Unit Count: 1 Count Manufacturer Part Number: NG1-M W/ OPTIONAL THROTTLE Material Type: Brass, Stainless Steel Exterior Finish: Brass, St...
Delivery & Returns
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
Medach
Folding Shelf Brackets, 20 Inch 4 Pcs Folding Shelf Hinge Heavy Duty Shelf Brackets,Collapsible Brackets for Foldable Shelf,Wall Mounted Table Brackets Space-Saving
US$63.38
Ravinte
Ravinte Matte Black Soft Close Drawer Slides 22 Inch 10 Pairs 20 Pack
US$188.15
HAUSHOF
HAUSHOF 4 Pack Closet Shelves Wall Mounted, 4 ft x 12 in Wire Shelf Kit
US$170.98
Ravinte
Ravinte Matte Black Soft Close Drawer Slides 12 Inch 5 Pairs 10 Pack
US$77.74
Ravinte
Ravinte Matte Black Soft Close Drawer Slides 14 Inch 5 Pairs 10 Pack
US$80.17
SONGMICS
SONGMICS 3-Tier Storage Shelves, Adjustable Wire Shelving Unit, 8 Hooks
US$54.70
Gracious Living
Gracious Living 4-Shelf Fixed-Height Medium-Duty Storage, Black, 2-Pack
US$171.47
AUXITO
AUXITO Tire Inflator Portable Air Compressor
US$89.98
SONGMICS
SONGMICS 5-Tier Storage Shelves, Adjustable Wire Shelving Unit, 8 Hooks
US$68.38
Shark Welding
Shark Industries PN-26-6M Die Grinder Cut-Off Wheel and Mandrel Kit Including 12431 Mandrel and 3-Inch x 1/32" x 3/8” Shark Type-1 Double-Reinforced Thin Wheels, 54 Grit, Maximum RPM 25,000 (6 Cutting Discs and 1 Mandrel)
US$51.55
KeenPower
Digital Cordless Tire Inflator Portable Air Compressor Automatic 160PSI w/Gauge
US$143.98
WEKIS
Shelf Brackets, Heavy Duty Floating Shelf Brackets 10-Inch Long, 6-Pack Brackets for Shelves, Matte White L Hidden Metal Wall Shelf Support Shelving Brackets, 1/5-Inch Thick 160 lb. Load Capacity
US$62.98
More options
Product Details
- Size: 140-175 PSI
- Number of Items: 1
- Unit Count: 1 Count
- Manufacturer Part Number: NG1-M W/ OPTIONAL THROTTLE
- Material Type: Brass, Stainless Steel
- Exterior Finish: Brass, Stainless Steel
- Inlet Connection Type: National Pipe Tapered
- Outlet Connection Type: NPT THREADING
- Maximum Pressure: 500 psi
- Thread Size: 1/2"
- Thread Type: NPT
- Valve Type: Check Valve
- Inlet Connection Size: 1/2 NPT inches
- Outlet Connection Size: 1/2 NPT inches
About this item
- 1/2" Female NPT Inlet / Outlet, Combination pilot valve, check valve, unloader valve all-in-one for 8HP - 13HP Gas Powered Air Compressor Engines and Below.
- Throttle Control: For Throttle Control Cable Variation option, please select your Throttle Control Cable OAL (Overall length) from the Variation options above.
- Unloader Valve PSI Options: Please select your ON/OFF PSI Rating on the Unloader Valve from the variations above. The Lower Pressure ON position, the unloader will relay to the engine through the throttle control that its time to cycle ON. The Higher Pressure OFF position, the unloader valve will relay to the engine through the throttle control that its time to Idle OFF. If you already have a Throttle Control Mechanism, simply select the " Valve ONLY " Variation option.
- Please see our break down sheet shown in our pics for details regarding each connection port.
- Unloader Valve: 30 CFM Flow Rate, Pressure differential 10 to 50 psi, operating temp -65f to 400f max. All brass construction and built for the rigors of outdoor gas compressors. Manual hand unloader toggle and brass venting muffler included.
- Throttle Control Cable: The throttle control connects from the unloader to your engine throttle arm and acts as a relay notifying the engine of when its time to run or idle. Each throttle control connects from the throttle outlet on the valve with a Z Bend connection type on the tip of the cable. Min. Pressure 80 PSI, Max Operating Pressure 500 PSI, Retracted Spring Force: 16.89 lbf, Stroke Length: 1.00 inch.
