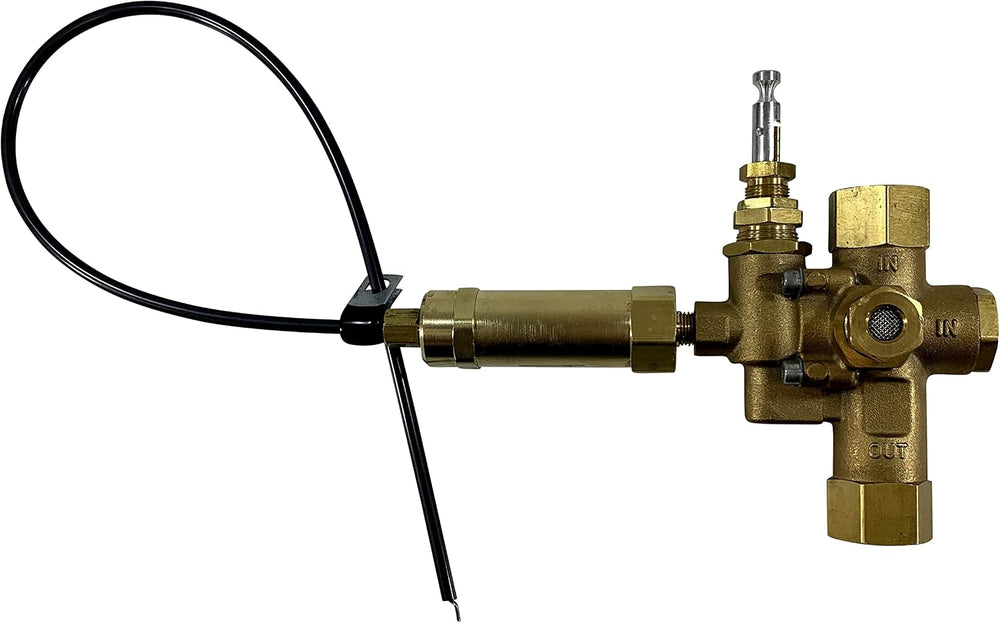

1/2" NPT Combination Pilot, Unloader, Check Valve plus Throttle Control Cable for 8HP - 13 HP Gas air Compressors and Below (140-175 PSI, 18" Throttle Control Cable & Unloader Valve)
US$161.98
Arrives as soon as ✓ Free shipping over $200Description
Product Details Size: 140-175 PSI Number of Items: 1 Unit Count: 1 Count Manufacturer Part Number: NG1-M W/ OPTIONAL THROTTLE Material Type: Brass, Stainless Steel Exterior Finish: Brass, St...
Delivery & Returns
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
Party Animals
Party Animals 5/8 x 8-1/2 Inch Wedge Anchor, 10 PCs Zinc-Plated Industrial Anchor Bolts for Cement, Concrete
US$53.98
Party Animals
Party Animals 1/2 x 4-1/2 Inch Wedge Anchor, 50 PCs Zinc-Plated Industrial Anchor Bolts for Cement, Concrete
US$79.18
EZ Shelf
EZ Shelf - Expandable Closet Shelf with Hanging Rod - 41.5" to 74" Closet Shelves Expand - 200 lb Capacity, White - Quick Install Wire Closet Shelving Alternative - Between 1 Side Wall and Back Wall
US$206.91
STURDIFLOW
XLarge 64''W Power Tool Organizer Wall Mount, 4-Tier
US$179.98
Zonon
Zonon 12 Sets Carriage Bolt, Silver, 1/2 x 10 Inch
US$53.98
Ailbiuko
45Pcs 1/4" Air Hose Fittings Coupler & Plug Air Compressor Kit
US$53.98
EZ Shelf
EZ SHELF - Closet Shelf with Hanging Rod - 29" to 49” Expandable, White, Closet Shelves - Strong, Holds 200 lbs - Easy Install - 1 Side Wall & Backwall with 1 End Bracket, Alternative to Wire Shelving
US$193.61
PARAROSE
Detailing Car Cleaning Gun Interior Dryer Air Blow Gun, High Pressure Blower Gun
US$64.21
CLT CLETING
CLT White Shelf Bracket, 10” X 4.7” Quarter Inch (1/4") Thick- Max Load: 440 lb Rustic Industrial Modern Farmhouse Heavy Duty Cold Rolled Steel Bracket for DIY Table Bench, Pack of 4
US$64.78
SafeRacks
SafeRacks 5-Tier Steel Tote Rack WS-BR27
US$161.96
kemimoto
KEMIMOTO Sheepskin Leather Motorcycle Gloves
US$77.38
Dynasty Hardware
Dynasty 1614 Series Door Closer, Sprayed Duronotic Bronze, Spring 1-4, ADA
US$181.42
More options
Product Details
- Size: 140-175 PSI
- Number of Items: 1
- Unit Count: 1 Count
- Manufacturer Part Number: NG1-M W/ OPTIONAL THROTTLE
- Material Type: Brass, Stainless Steel
- Exterior Finish: Brass, Stainless Steel
- Inlet Connection Type: National Pipe Tapered
- Outlet Connection Type: NPT THREADING
- Maximum Pressure: 500 psi
- Thread Size: 1/2
- Thread Type: NPT
- Valve Type: combination check unloader pilot valve
- Inlet Connection Size: 1/2 NPT inches
- Outlet Connection Size: 1/2 NPT inches
About this item
- 1/2" Female NPT Inlet / Outlet, Combination pilot valve, check valve, unloader valve all-in-one for 8HP - 13HP Gas Powered Air Compressor Engines and Below.
- Throttle Control: For Throttle Control Cable Variation option, please select your Throttle Control Cable OAL (Overall length) from the Variation options above.
- Unloader Valve PSI Options: Please select your ON/OFF PSI Rating on the Unloader Valve from the variations above. The Lower Pressure ON position, the unloader will relay to the engine through the throttle control that its time to cycle ON. The Higher Pressure OFF position, the unloader valve will relay to the engine through the throttle control that its time to Idle OFF. If you already have a Throttle Control Mechanism, simply select the " Valve ONLY " Variation option.
- Please see our break down sheet shown in our pics for details regarding each connection port.
- Unloader Valve: 30 CFM Flow Rate, Pressure differential 10 to 50 psi, operating temp -65f to 400f max. All brass construction and built for the rigors of outdoor gas compressors. Manual hand unloader toggle and brass venting muffler included.
- Throttle Control Cable: The throttle control connects from the unloader to your engine throttle arm and acts as a relay notifying the engine of when its time to run or idle. Each throttle control connects from the throttle outlet on the valve with a Z Bend connection type on the tip of the cable. Min. Pressure 80 PSI, Max Operating Pressure 500 PSI, Retracted Spring Force: 16.89 lbf, Stroke Length: 1.00 inch.
